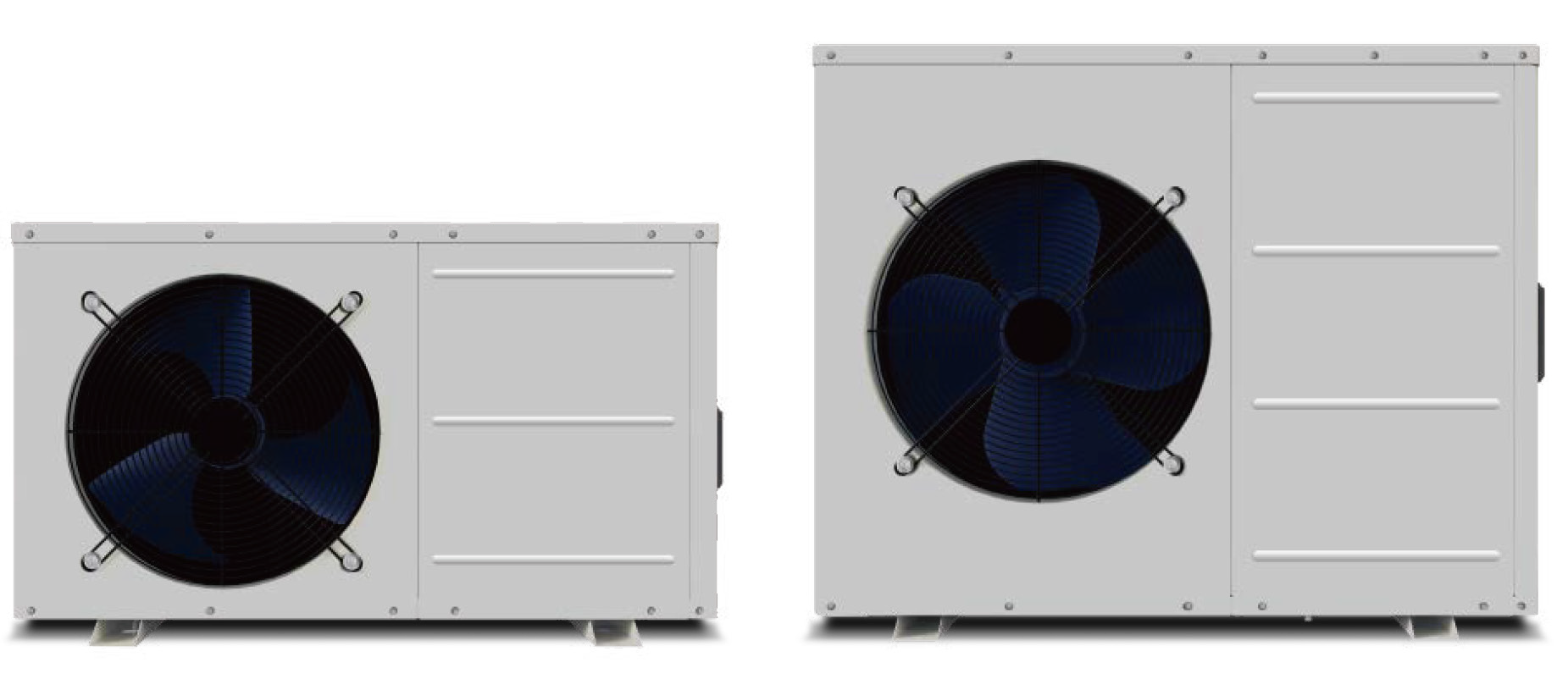

Compact Hydronic Revolution – R134A Side-Flow Heat Pump Hot Water System
Reinvent domestic thermal efficiency with our space-optimized air to water heat pump, engineered to deliver COP 4.3 efficiency in tight installations. This heat pump hot water system combines innovative side inlet/outlet configuration with R134A eco-tech, achieving 60% energy savings versus conventional water heaters.
Core Engineering Breakthroughs
🚪 Space-Smart Heat Pump Hot Water Design
Patented 360° side-flow technology enables wall/ceiling mounting in 0.8m² areas – 40% smaller footprint than standard air to water heat pump units.
🌿 Eco-Conscious R134A Performance
GWP 1430 refrigerant (ODP=0) reduces carbon emissions by 55% vs R22 systems, compliant with F-Gas/CE directives.
🔋 Precision Heat Pump Hot Water System Control
Wi-Fi/Amazon Alexa enabled features:
• 0.5°C temperature precision
• 4-mode operation (Eco/Boost/Schedule/Anti-Freeze)
• Leakage self-detection system
• Real-time energy consumption tracking
🔇 Silent-Scape Operation
49dB(A) noise levels – quieter than refrigerator hum – with vibration-optimized compressor mounting.
Arctic-Grade Reliability
• Full heating capacity at -10°C ambient
• 316L stainless steel coaxial exchanger
• IPX4 weather-resistant construction
• 3-year full warranty + 10-year anti-corrosion guarantee
Smart Home Integration
• Compatible with Google Home/Apple HomeKit
• Automatic firmware updates
• Energy Star certified connectivity
Strategic Applications
• Compact heat pump hot water retrofits for apartments
• Eco-home air to water heat pump installations
• Tiny house thermal systems
• Garage workshop heat pump hot water system upgrades
• Supplemental heating for solar thermal networks
| Model | CYD-29Ⅱ/200C2 | CYD-29Ⅱ/250C2 | CYD-24Ⅱ/150C1 | CYD-24Ⅱ/200C1 | CYD-24Ⅱ/250C1 | |||||||||||||||||||||||||||||||||||||||
| Refrigerant | R290 | R290 | R134a | R134a | R134a | |||||||||||||||||||||||||||||||||||||||
| Power Supply | 220~240V/1/50Hz | |||||||||||||||||||||||||||||||||||||||||||
| Heating Capacity At Air 20℃ /15℃ ,Water Temperature From15℃ To55℃ | ||||||||||||||||||||||||||||||||||||||||||||
| Rated Heating Capacity(Kw) | 2.9 | 2.9 | 2.4 | 2.4 | 2.4 | |||||||||||||||||||||||||||||||||||||||
| Rated Input Power(Kw) | 0.7 | 0.7 | 0.57 | 0.57 | 0.57 | |||||||||||||||||||||||||||||||||||||||
| COP | 4.3 | 4.3 | 4.1 | 4.1 | 4.1 | |||||||||||||||||||||||||||||||||||||||
| Max Current(A) | 16.0 | 16.0 | 15.0 | 15.0 | 15.0 | |||||||||||||||||||||||||||||||||||||||
| Tank Capacity(L) | 200 | 250 | 150 | 200 | 250 | |||||||||||||||||||||||||||||||||||||||
| Outer Casing/Shape | Full colour painted casing/Square | |||||||||||||||||||||||||||||||||||||||||||
| Expansion Valve | Electronic | |||||||||||||||||||||||||||||||||||||||||||
| Air Flow(M³/H) | 450 | |||||||||||||||||||||||||||||||||||||||||||
| Air Discharge | Horizontal | |||||||||||||||||||||||||||||||||||||||||||
| Air Duct Diameter | Non-ducted | |||||||||||||||||||||||||||||||||||||||||||
| Back-Up Heater(Kw) | 2 | |||||||||||||||||||||||||||||||||||||||||||
| Default Water Temperature(℃ ) | 55 | |||||||||||||||||||||||||||||||||||||||||||
| Working Temperature Range(℃ ) | -7-43 | |||||||||||||||||||||||||||||||||||||||||||
| Unpacked Dimension(L*W*H)(Mm) | 600*600*1600 | 600*600*1830 | 500*500*1670 | 600*600*1600 | 600*600*1830 | |||||||||||||||||||||||||||||||||||||||
| Packed Dimension(L*W*H)(Mm) | 700*700*1770 | 700*700*2050 | 640*640*1840 | 700*700*1770 | 700*700*2050 | |||||||||||||||||||||||||||||||||||||||
| Net Weight(Kg) | 118 | 136 | 92 | 118 | 136 | |||||||||||||||||||||||||||||||||||||||
| Gross Weight(Kg) | 137 | 155 | 110 | 137 | 155 | |||||||||||||||||||||||||||||||||||||||
| Noise(Db(A)) | 48 | 48 | 48 | 48 | 48 | |||||||||||||||||||||||||||||||||||||||
We promise that if the main parts of the product are damaged due to quality or process problems within 48 months, we will guarantee the product.
Customers can read our product catalog, browse different product introductions, or ask our customer service, our professional team will advise you according to your needs.
T/T, L/C at sight
45 days after the deposit received.
We accept all OEM orders, please contact us and send me your design. We will provide you with a reasonable price and provide you with samples as soon as possible.
We are R&D and manufacturer factory. We have 200,000 square meters of modern factories in Foshan and Liuzhou. OEM service is available.
