8kw 380-415V R290 Inverter Heat Pump

Brand i+Airener
Product originCHINA

R290 All in One Heat Pump丨All-round low-carbon solution Scene coverage: Adaptable to residential/commercial heating and cooling hot water supply, has served 30 hotels and school projects in Europe Technical core: R290 environmentally friendly refrigerant (GWP<3) is equipped with an intelligent frequency conversion system, with an energy efficiency ratio of 4.8, exceeding the EU A standard

Product Description

# All in One R290 Heat Pump: Your All-Round Low-Carbon Solution

## Revolutionize Your Energy Efficiency

Introducing the All in One R290 Heat Pump—a versatile, eco-conscious heating and cooling solution designed for modern residential and commercial needs. Engineered with advanced R290 refrigerant technology and intelligent systems, this heat pump delivers superior performance while significantly reducing carbon footprint.

### One System, Multiple Applications

- **Complete Scene Coverage**: Perfect for residential, commercial, and institutional heating, cooling, and hot water supply

- **Proven Performance**: Successfully implemented in over 30 hotel and school projects across Europe

- **Year-Round Solution**: Provides efficient climate control and hot water in a single, integrated system

### Technical Excellence

**Eco-Conscious Refrigerant**

- Utilizes R290 natural refrigerant with Global Warming Potential (GWP) <3

- 99% lower environmental impact compared to traditional refrigerants

- Fully compliant with and exceeding EU ecological standards

**Intelligent Performance**

- Advanced frequency conversion system automatically adjusts to demand

- Outstanding energy efficiency ratio of 4.8 (exceeding EU A+++ standards)

- Smart operation minimizes energy consumption while maximizing comfort

**Superior Efficiency**

- Cut energy costs by up to 60% compared to conventional systems

- Reduced operational expenses with minimal maintenance requirements

- Quick return on investment through substantial energy savings

### Why Choose Our R290 Heat Pump?

✅ **Future-Proof Technology**: Stay ahead of evolving environmental regulations

✅ **Verified Reliability**: Field-tested in diverse European climates and building types

✅ **Simplified Installation**: All-in-one design reduces setup complexity and cost

✅ **Quiet Operation**: Advanced noise reduction for unobtrusive performance

✅ **Smart Connectivity**: Compatible with modern building management systems

### Specifications at a Glance

- Refrigerant: R290 (GWP<3)

- Energy Efficiency Ratio: 4.8

- Standards: Exceeds EU A+++ requirements

- Applications: Heating, cooling & hot water supply

- Suitable For: Homes, hotels, schools, commercial buildings

### Join Europe's Sustainable Transition

Become part of the growing movement of European businesses and institutions choosing sustainable climate solutions. Our R290 Heat Pump has already helped 30+ hotels and schools reduce their carbon emissions while cutting energy costs.

**Ready to transform your heating and cooling system?** Contact us today for a customized efficiency analysis and discover how our R290 All in One Heat Pump can deliver your all-round low-carbon solution.

---

*Committed to sustainable innovation for a cooler planet.*

Product Parameters

Model:				CHP-12Ⅲ/CD4		CHP-18Ⅲ/CD4		CHP-24Ⅲ/CD4
Power Supply				380-415V 3N-/50Hz
Nominal Heating A7/W35		Heating Capacity	kW	12.00		18.00		24.00
		Power Input	kW	2.67		3.91		5.58
		Current Input	A	4.90		7.30		10.30
		COP	W/W	4.50		4.60		4.30
Nominal Heating A7/W55		Heating Capacity	kW	12.00		17.10		22.80
		Power Input	kW	4.12		6.43		8.60
		Current Input	A	7.60		11.90		15.90
		COP	W/W	2.91		2.66		2.65
Nominal Cooling A35/W7		Cooling Capacity	kW	10.30		15.30		17.50
		Input Power	kW	3.75		5.86		6.73
		Input Current	A	6.90		10.90		12.50
SCOP(Water Temp. At 35°C)			/	A+++
SCOP(Water Temp. At 55°C)			/	A++
Retrigerant Type / Weight			/ kg	R290/0.97		R290/1.30		R290/1.60
Fan Quantity			/	1		2
Sound Pressure At 1m Distance			dB(A)	52		54
Water Pressure Drop			kPa	20		55
Water Piping Connections			inch	G1”
Operating Temperature Range (Heating Mode)			℃	-25~45
Max. Outlet Water Temp			℃	75
Compressor Brand			/	HIGHLY
Circulating Pump			/	Built-In
Unpacked Dimensions(L×D×H)			mm	1138×508×938		1138×508×1406
Packed Dimensions(L×D×H)			mm	1168×538×958		1168×538×1426
Model Name:				CHP-10Ⅲ/CD3	CHP-12Ⅲ/CD3		CHP-14Ⅲ/CD3		CHP-16Ⅲ/CD3
Power Supply:			V/ph/Hz	380-420/3/50
A7/W35	Heating Capacity		KW	10	12		14		16
	Heating Power Input		KW	2.28	2.47		2.99		3.59
	COP		W/W	4.39	4.86		4.69		4.46
A7/W55	Heating Capacity		KW	10.99	11.99		14		16
	Heating Power Input		KW	3.68	4.06		5.17		5.97
	COP		W/W	2.99	2.95		2.71		2.68
A35/W18	Cooling Capacity		KW	9.20	10.6		13.1		13.4
	Cooling Power Input		KW	2.00	2.57		3.25		3.54
	EER		W/W	4.60	4.13		4.03		3.78
A35/W7	Cooling Capacity		KW	7.90	10.5		12		13.6
	Cooling Power Input		KW	2.43	3.68		4.21		4.98
	EER		W/W	3.25	2.85		2.85		2.73
Max Input Cerrent			A	26	13		15		16
Max Input Power			KW	5.3	6.5		7.4		8
SCOP(Water Temp. At 35°C)			/	A+++	A+++		A+++		A+++
SCOP(Water Temp. At 55°C)			/	A++	A++		A++		A++
Fan Quantity				1			2
Sound Power Level (En12102 35℃ )			dB(A)	58	60		62		64
Water Connection	Inlet Dia.(Mpt Gas		inch	1.00	1.25		1.25		1.25
	Outlet Dia.(Mpt Gas)		inch	1.00	1.25		1.25		1.25
Unit Outdoor Dimensions (LWH)			mm	1091424973	1091424973		10914241363		10914241363

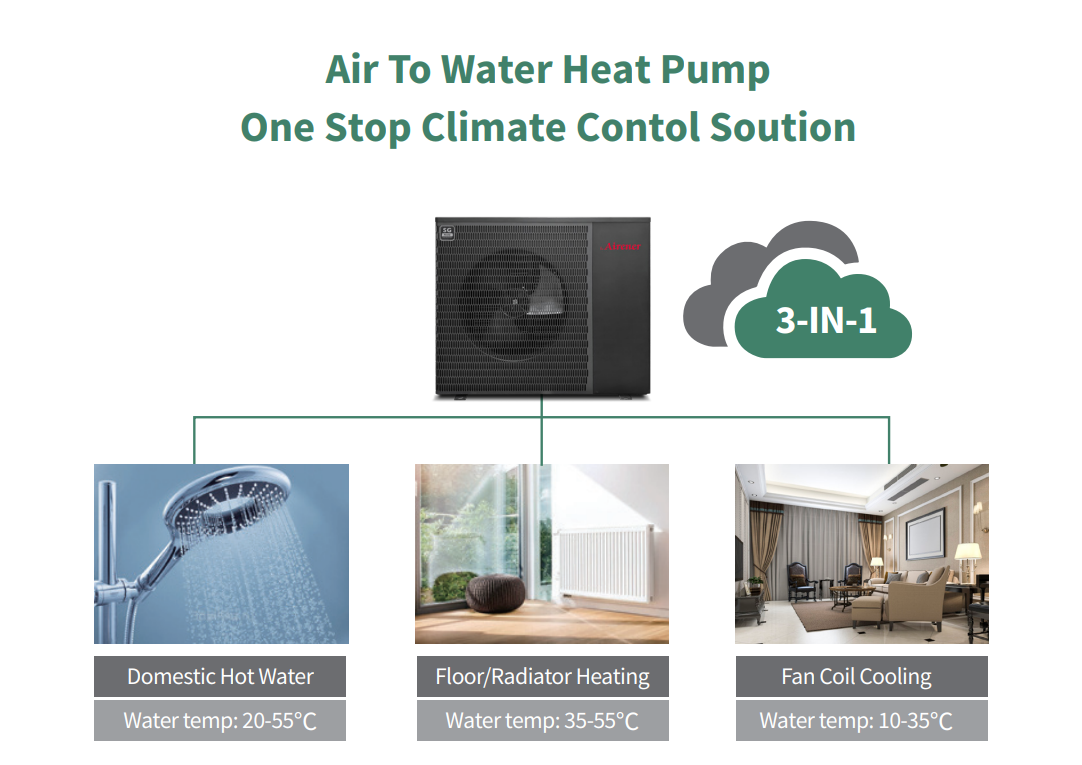

Air to Water Heat Pump
