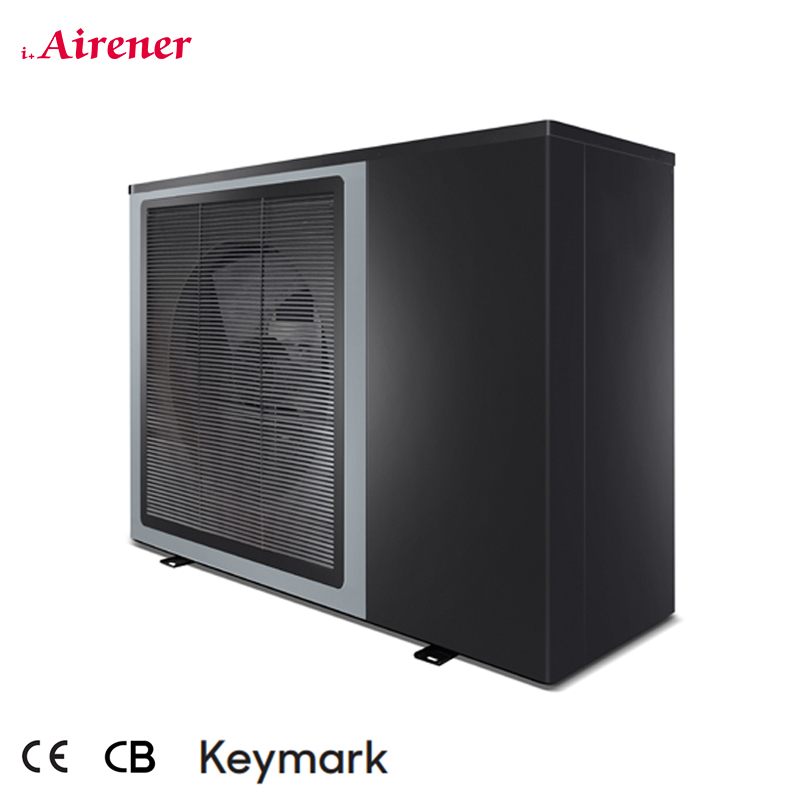

6kw 380-415V R290 Air To Water Heat Pump

Brand i+Airener
Product originCHINA

R290 All in One Heat Pump Energy class:A+++ Full DC Inverter compressor and fan motor -25℃ Inverter EVI WIFI smart control Low noise

Product Description

**R290 All-in-One Heat Pump: The Future of Efficient Heating**

**Energy Efficiency Redefined**

• **A+++ Energy Rating** – Experience unparalleled energy savings with the highest efficiency class, significantly reducing your electricity bills and environmental impact.

**Advanced DC Inverter Technology**

• **Full DC Inverter System** – Featuring a DC inverter compressor and fan motor for ultra-precise temperature control, whisper-quiet operation, and up to 30% higher efficiency compared to conventional models.

• **-25°C Inverter EVI (Enhanced Vapor Injection)** – Provides reliable and powerful heating even in extreme winter conditions down to -25°C, ensuring year-round comfort.

**Smart Connectivity**

• **WiFi Smart Control** – Manage your heating system from anywhere via smartphone app. Schedule operations, monitor energy usage, and adjust settings remotely for ultimate convenience and control.

**Eco-Friendly Innovation**

• **R290 Refrigerant** – Utilizes propane (R290), a natural refrigerant with ultra-low global warming potential (GWP), making it one of the most environmentally sustainable choices available.

**All-in-One Design**

• **Integrated Solution** – Compact, space-saving unit combining indoor and outdoor components into a single, streamlined system for easier installation and a sleek aesthetic.

**Key Benefits:**

- Drastically lower operating costs

- Consistent comfort in any climate

- Reduced carbon footprint

- Quiet, reliable performance

- Modern, user-friendly control

Upgrade to intelligent, sustainable heating with the R290 All-in-One Heat Pump – where cutting-edge technology meets environmental responsibility.

Product Parameters

Model:				CHP-12Ⅲ/CD4		CHP-18Ⅲ/CD4		CHP-24Ⅲ/CD4
Power Supply				380-415V 3N-/50Hz
Nominal Heating A7/W35		Heating Capacity	kW	12.00		18.00		24.00
		Power Input	kW	2.67		3.91		5.58
		Current Input	A	4.90		7.30		10.30
		COP	W/W	4.50		4.60		4.30
Nominal Heating A7/W55		Heating Capacity	kW	12.00		17.10		22.80
		Power Input	kW	4.12		6.43		8.60
		Current Input	A	7.60		11.90		15.90
		COP	W/W	2.91		2.66		2.65
Nominal Cooling A35/W7		Cooling Capacity	kW	10.30		15.30		17.50
		Input Power	kW	3.75		5.86		6.73
		Input Current	A	6.90		10.90		12.50
SCOP(Water Temp. At 35°C)			/	A+++
SCOP(Water Temp. At 55°C)			/	A++
Retrigerant Type / Weight			/ kg	R290/0.97		R290/1.30		R290/1.60
Fan Quantity			/	1		2
Sound Pressure At 1m Distance			dB(A)	52		54
Water Pressure Drop			kPa	20		55
Water Piping Connections			inch	G1”
Operating Temperature Range (Heating Mode)			℃	-25~45
Max. Outlet Water Temp			℃	75
Compressor Brand			/	HIGHLY
Circulating Pump			/	Built-In
Unpacked Dimensions(L×D×H)			mm	1138×508×938		1138×508×1406
Packed Dimensions(L×D×H)			mm	1168×538×958		1168×538×1426
Model Name:				CHP-10Ⅲ/CD3	CHP-12Ⅲ/CD3		CHP-14Ⅲ/CD3		CHP-16Ⅲ/CD3
Power Supply:			V/ph/Hz	380-420/3/50
A7/W35	Heating Capacity		KW	10	12		14		16
	Heating Power Input		KW	2.28	2.47		2.99		3.59
	COP		W/W	4.39	4.86		4.69		4.46
A7/W55	Heating Capacity		KW	10.99	11.99		14		16
	Heating Power Input		KW	3.68	4.06		5.17		5.97
	COP		W/W	2.99	2.95		2.71		2.68
A35/W18	Cooling Capacity		KW	9.20	10.6		13.1		13.4
	Cooling Power Input		KW	2.00	2.57		3.25		3.54
	EER		W/W	4.60	4.13		4.03		3.78
A35/W7	Cooling Capacity		KW	7.90	10.5		12		13.6
	Cooling Power Input		KW	2.43	3.68		4.21		4.98
	EER		W/W	3.25	2.85		2.85		2.73
Max Input Cerrent			A	26	13		15		16
Max Input Power			KW	5.3	6.5		7.4		8
SCOP(Water Temp. At 35°C)			/	A+++	A+++		A+++		A+++
SCOP(Water Temp. At 55°C)			/	A++	A++		A++		A++
Fan Quantity				1			2
Sound Power Level (En12102 35℃ )			dB(A)	58	60		62		64
Water Connection	Inlet Dia.(Mpt Gas		inch	1.00	1.25		1.25		1.25
	Outlet Dia.(Mpt Gas)		inch	1.00	1.25		1.25		1.25
Unit Outdoor Dimensions (LWH)			mm	1091424973	1091424973		10914241363		10914241363

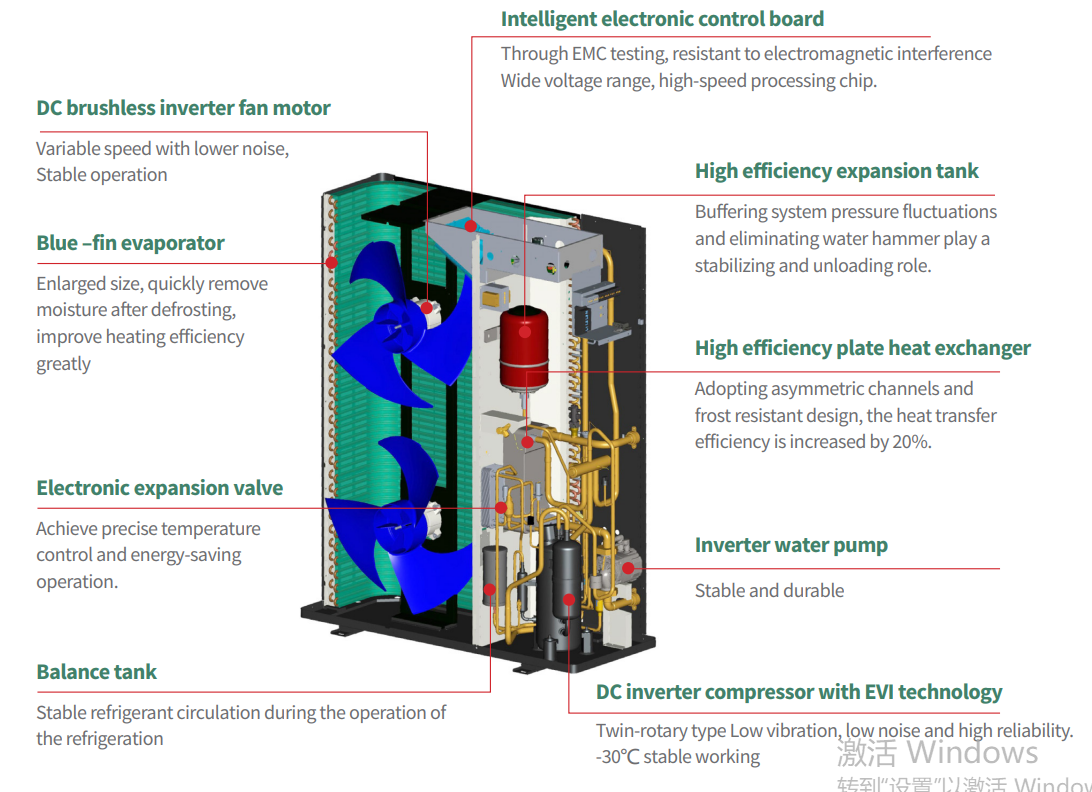

heat pump for house

Tags:

heat pump for house dc to ac converter

Do your heat pumps work in -30°C?

Yes. Our PhD team has optimized the R290 cycle to ensure stable heating even in sub-zero Nordic extremes.

Can I customize the casing and software with my brand?

Absolutely. We offer full OEM/ODM services including logo silk-screening, custom colors, and localized UI software.

What certifications do you have for the EU market?

Our products are fully certified with CE, Keymark, and ErP A+++ for 2026 standards.

How long is the warranty period of the heat pump?

We promise that if the main parts of the product are damaged due to quality or process problems within 48 months, we will guarantee the product.

How do I choose the most suitable heat pump model?

Customers can read our product catalog, browse different product introductions, or ask our customer service, our professional team will advise you according to your needs.

What Payment term do you support?

T/T, L/C at sight

What is your delivery time?

45 days after the deposit received.

Can you do OEM for me?

We accept all OEM orders, please contact us and send me your design. We will provide you with a reasonable price and provide you with samples as soon as possible.
