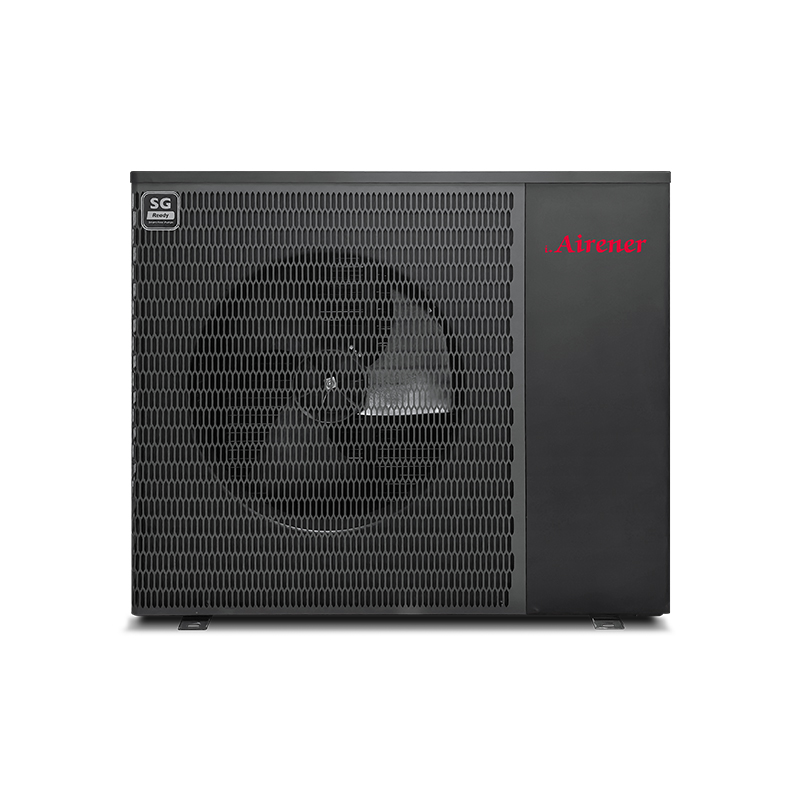

10kw R290 Monoblock DC Inverter Heat Pump

Brand i+Airener
Product originCHINA

R290 All in One Heat Pump Energy class:A+++ Full DC Inverter compressor and fan motor -25℃ Inverter EVI WIFI smart control

Our Advantages:

R290 All-In-One Heat Pump: Intelligence Meets Eco-Conscious Performance

A+++ Rated Efficiency
Operate at peak performance while minimizing energy consumption. Our A+++ rating ensures maximum savings on utility bills without compromising on comfort.

Full DC Inverter Technology
• Dual Inverter Precision – Equipped with both a DC inverter compressor and fan motor for smoother operation, reduced noise, and enhanced energy efficiency.
• EVI Heating Down to -25°C – Advanced Enhanced Vapor Injection technology delivers strong, consistent heating even in freezing temperatures as low as -25°C.

Smart & Connected
• WiFi Remote Control – Adjust temperature, set timers, and monitor system performance in real time from your phone. Enjoy complete control from anywhere, at any time.

Sustainable by Design
• R290 Natural Refrigerant – Engineered with environmentally responsible R290 refrigerant, offering near-zero global warming potential and ozone-safe operation.

Sleek All-In-One Unit
• Unified Design – A compact and integrated solution that simplifies installation, saves space, and blends seamlessly into modern living and working environments.

Why Choose Our R290 Heat Pump?

Lower Energy Costs – High efficiency translates to long-term savings.
Year-Round Reliability – Powerful heating in extreme cold.
Eco-Friendly Choice – Reduced environmental impact with R290 refrigerant.
Smart Living – Intuitive app control for modern lifestyles.
Quiet & Discreet – Advanced technology for peaceful operation.

Experience smarter heating, exceptional efficiency, and a greener footprint—all in one intelligent system.

Product Parameters:

Model:				CHP-12Ⅲ/CD4		CHP-18Ⅲ/CD4		CHP-24Ⅲ/CD4
Power Supply				380-415V 3N-/50Hz
Nominal Heating A7/W35		Heating Capacity	kW	12.00		18.00		24.00
		Power Input	kW	2.67		3.91		5.58
		Current Input	A	4.90		7.30		10.30
		COP	W/W	4.50		4.60		4.30
Nominal Heating A7/W55		Heating Capacity	kW	12.00		17.10		22.80
		Power Input	kW	4.12		6.43		8.60
		Current Input	A	7.60		11.90		15.90
		COP	W/W	2.91		2.66		2.65
Nominal Cooling A35/W7		Cooling Capacity	kW	10.30		15.30		17.50
		Input Power	kW	3.75		5.86		6.73
		Input Current	A	6.90		10.90		12.50
SCOP(Water Temp. At 35°C)			/	A+++
SCOP(Water Temp. At 55°C)			/	A++
Retrigerant Type / Weight			/ kg	R290/0.97		R290/1.30		R290/1.60
Fan Quantity			/	1		2
Sound Pressure At 1m Distance			dB(A)	52		54
Water Pressure Drop			kPa	20		55
Water Piping Connections			inch	G1”
Operating Temperature Range (Heating Mode)			℃	-25~45
Max. Outlet Water Temp			℃	75
Compressor Brand			/	HIGHLY
Circulating Pump			/	Built-In
Unpacked Dimensions(L×D×H)			mm	1138×508×938		1138×508×1406
Packed Dimensions(L×D×H)			mm	1168×538×958		1168×538×1426
Model Name:				CHP-10Ⅲ/CD3	CHP-12Ⅲ/CD3		CHP-14Ⅲ/CD3		CHP-16Ⅲ/CD3
Power Supply:			V/ph/Hz	380-420/3/50
A7/W35	Heating Capacity		KW	10	12		14		16
	Heating Power Input		KW	2.28	2.47		2.99		3.59
	COP		W/W	4.39	4.86		4.69		4.46
A7/W55	Heating Capacity		KW	10.99	11.99		14		16
	Heating Power Input		KW	3.68	4.06		5.17		5.97
	COP		W/W	2.99	2.95		2.71		2.68
A35/W18	Cooling Capacity		KW	9.20	10.6		13.1		13.4
	Cooling Power Input		KW	2.00	2.57		3.25		3.54
	EER		W/W	4.60	4.13		4.03		3.78
A35/W7	Cooling Capacity		KW	7.90	10.5		12		13.6
	Cooling Power Input		KW	2.43	3.68		4.21		4.98
	EER		W/W	3.25	2.85		2.85		2.73
Max Input Cerrent			A	26	13		15		16
Max Input Power			KW	5.3	6.5		7.4		8
SCOP(Water Temp. At 35°C)			/	A+++	A+++		A+++		A+++
SCOP(Water Temp. At 55°C)			/	A++	A++		A++		A++
Fan Quantity				1			2
Sound Power Level (En12102 35℃ )			dB(A)	58	60		62		64
Water Connection	Inlet Dia.(Mpt Gas		inch	1.00	1.25		1.25		1.25
	Outlet Dia.(Mpt Gas)		inch	1.00	1.25		1.25		1.25
Unit Outdoor Dimensions (LWH)			mm	1091424973	1091424973		10914241363		10914241363

whole home heat pump

Tags:

whole home heat pump Monoblock Heat Pump

Do your heat pumps work in -30°C?

Yes. Our PhD team has optimized the R290 cycle to ensure stable heating even in sub-zero Nordic extremes.

Can I customize the casing and software with my brand?

Absolutely. We offer full OEM/ODM services including logo silk-screening, custom colors, and localized UI software.

What certifications do you have for the EU market?

Our products are fully certified with CE, Keymark, and ErP A+++ for 2026 standards.

How long is the warranty period of the heat pump?

We promise that if the main parts of the product are damaged due to quality or process problems within 48 months, we will guarantee the product.

How do I choose the most suitable heat pump model?

Customers can read our product catalog, browse different product introductions, or ask our customer service, our professional team will advise you according to your needs.

What Payment term do you support?

T/T, L/C at sight

What is your delivery time?

45 days after the deposit received.

Can you do OEM for me?

We accept all OEM orders, please contact us and send me your design. We will provide you with a reasonable price and provide you with samples as soon as possible.
